Malleable Iron Fittings
Black Malleable Iron Fittings
Malleable Cast Iron Fittings
Galvanized Malleable Iron Fittings
Table of Content
- Malleable iron fittings specifications
- Pressure rating for class 150 malleable iron fittings
- Class 300 malleable iron fittings pressure rating
- Mi pipe fittings price list
- Different types types of malleable iron pipe fittings
- Malleable iron fittings dimensions
- Black malleable iron tee dimensions
- Galvanized malleable iron couplings dimensions
- Cast malleable iron unions dimensions
- Threading of malleable cast iron fittings
- Black malleable iron fittings chemical composition
Check malleable cast iron elbow specifications as per ASME B 16.3
Malleable iron fittings specifications
ADNOC Approved malleable iron tee manufacturer in India, view Mi pipe fittings pressure rating in Class 150/ 300
Pressure rating for class 150 malleable iron fittings
| Class 150 Malleable Iron Fittings | Class 150 PSI | |
|---|---|---|
| Temperature In °F | Temperature In °C | |
| -200 to 150°F | -29 to 66 | 300 |
| 200°F | 93°C | 265 |
| 300°F | 149°C | 185 |
| 400°F | 204°C | – |
| 500°F | 260°C | – |
Class 300 malleable iron fittings pressure rating
| Class 300 Malleable Iron Fittings | CL 300 PSI | |||
|---|---|---|---|---|
| Temperature In °F | Temperature In °C | Size = 1/4 To 1 | Size = 1/4 To 2 | Size = 2 1/2 To 3 |
| -200 to 150 | -29 to 66 | 2000 | 1500 | 1000 |
| 200 | 93 | 1785 | 1350 | 910 |
| 300 | 149 | 1360 | 1050 | 735 |
| 400 | 204 | 935 | 750 | 560 |
| 500 | 260 | 510 | 450 | 385 |
Malleable iron reducer supplier in Mumbai offers different types and malleable iron threaded fittings sizes at factory price
- Types = Malleable Iron Threaded Elbow
- Method = Threaded
| Size In Inch | Size In MM | Price in UAE Dirham (AED) per unit | Price in US (Dollar) per unit |
|---|---|---|---|
| 1/2 | 15 | 1.76 | US $0.48 |
| 3/4 | 20 | 3.38 | US $0.92 |
| 1 | 25 | 5.29 | US $1.44 |
| 1 1/4 | 32 | 7.49 | US $2.04 |
| 1 1/2 | 40 | 9.70 | US $2.64 |
| 2 | 50 | 15.24 | US $4.15 |
| 2 1/2 | 65 | 18.70 | US $5.09 |
| 3 | 80 | 24.79 | US $6.75 |
| 4 | 100 | 34.53 | US $9.40 |
- Types = Malleable Cast Iron Coupling
- Method = Threaded
| Size In Inch | Size In MM | Price in UAE Dirham (AED) per unit | Price in US (Dollar) per unit |
|---|---|---|---|
| 1/2 | 15 | 1.69 | US $0.46 |
| 3/4 | 20 | 3.16 | US $0.86 |
| 1 | 25 | 4.04 | US $1.10 |
| 1 1/4 | 32 | 7.49 | US $2.04 |
| 1 1/2 | 40 | 5.44 | US $1.48 |
| 2 | 50 | 11.13 | US $3.03 |
| 2 1/2 | 65 | 15.24 | US $4.15 |
| 3 | 80 | 21.52 | US $5.86 |
| 4 | 100 | 28.43 | US $7.74 |
- Types = Mi Union
- Method = Threaded
| Size In Inch | Size In MM | Price in UAE Dirham (AED) per unit | Price in US (Dollar) per unit |
|---|---|---|---|
| 1/2 | 15 | 4.22 | US $1.15 |
| 3/4 | 20 | 7.35 | US $2.00 |
| 1 | 25 | 11.28 | US $3.07 |
| 1 1/4 | 32 | 16.49 | US $4.49 |
| 1 1/2 | 40 | 19.17 | US $5.22 |
| 2 | 50 | 24.83 | US $6.76 |
| 2 1/2 | 65 | 28.98 | US $7.89 |
| 3 | 80 | 35.15 | US $9.57 |
| 4 | 100 | 39.59 | US $10.78 |
Different types types of malleable iron pipe fittings
Malleable iron elbow
Galvanized malleable iron elbow
Black malleable iron 45 degree elbow

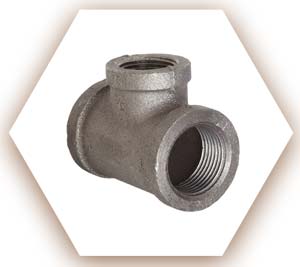

Malleable iron tee
Mi reducing tee
Malleable iron equal tee
Malleable iron reducer
Class 150 malleable iron end cap
Malleable iron coupling

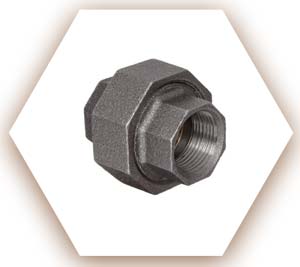

class 300 malleable iron union
Malleable iron plug
Black malleable iron cross
Gi malleable iron reducing coupling
Galvanized malleable iron 90 deg street elbow
Malleable cast iron hexagon bushings
Refer to black malleable iron fittings dimensions, and buy online malleable iron screwed pipe fittings available in all surface and wall thickness
Malleable iron fittings dimensions
| NPS | Dimension | Weight | Dimension | Weight |
|---|---|---|---|---|
| Inch | A | KG | C | KG |
| 1/8 | 0.69 | 0.07 | 0.69 | 0.07 |
| 1/4 | 0.81 | 0.11 | 0.73 | 0.11 |
| 3/8 | 0.95 | 0.15 | 0.80 | 0.15 |
| 1/2 | 1.12 | 0.22 | 0.88 | 0.22 |
| 3/4 | 1.31 | 0.35 | 0.98 | 0.31 |
| 1 | 1.50 | 0.55 | 1.12 | 0.51 |
| 1 1/4 | 1.75 | 0.93 | 1.29 | 0.75 |
| 1 1/2 | 1.94 | 1.1 | 1.43 | 0.97 |
| 2 | 2.25 | 1.8 | 1.68 | 1.6 |
Black malleable iron tee dimensions
| NPS | Dimension | Weight |
|---|---|---|
| Inch | A | KG |
| 1/8 | 0.69 | 0.09 |
| 1/4 | 0.81 | 0.11 |
| 3/8 | 0.95 | 0.20 |
| 1/2 | 1.12 | 0.24 |
| 3/4 | 1.31 | 0.42 |
| 1 | 1.50 | 0.66 |
| 1 1/4 | 1.75 | 1.1 |
| 1 1/2 | 1.94 | 1.3 |
| 2 | 2.25 | 2.0 |
Galvanized malleable iron couplings dimensions
| NPS | Dimension | Weight |
|---|---|---|
| Inch | W | KG |
| 1/8 | 0.96 | 0.07 |
| 1/4 | 1.06 | 0.07 |
| 3/8 | 1.16 | 0.11 |
| 1/2 | 1.34 | 0.18 |
| 3/4 | 1.52 | 0.26 |
| 1 | 1.67 | 0.44 |
| 1 1/4 | 1.93 | 0.62 |
| 1 1/2 | 2.15 | 0.90 |
| 2 | 2.53 | 1.2 |
Cast malleable iron unions dimensions
| NPS | Dimension | Weight |
|---|---|---|
| Inch | L | KG |
| 1/4 | 1.32 | .20 |
| 3/8 | 1.52 | .31 |
| 1/2 | 1.59 | .42 |
| 3/4 | 1.91 | .56 |
| 1 | 2.11 | .93 |
| 1 1/4 | 2.32 | 1.3 |
| 1 1/2 | 2.58 | 1.7 |
| 2 | 2.85 | 2.6 |
Threading of malleable cast iron fittings
- Threads Standard = ASME B1.20.1
- Sizes = 1/8, 1/4, 3/8 and 1/2
View malleable cast iron fittings chemical composition, and ASTM/ASME standard of galvanized Mi fittings
Black malleable iron fittings chemical composition
| Element | Value |
|---|---|
| Carbon | 2-2.65 |
| Silicon | 0.90-1.65 |
| Manganese | 0.25-1.25 |
| Sulphur | 0.05-0.18 |
| Phosphorus | 0.18 Maximum |
Frequently Asked Questions (FAQs) –
What is the pressure rating of malleable iron fittings?
- 150 PSI and 300 PSI
What is the standard for Mi pipe fittings?
- ASME B 16.3
What are malleable cast iron fittings used for?
- Water supply
- Oil system
- Gas system
