IS 1239 Fittings
IS 1239 elbow
IS 1239 tee
IS 1239 reducer
Table of Content
- IS 1239 material specification
- Common types of IS 1239 Part 2 elbow
- Different types of IS 1239 tee
- Top selling types of IS 1239 reducer
- Most popular types of IS 1239 end cap
- IS 1239 part 2 fittings temperature range
- Tensile strength of IS 1239 class B mild steel fittings
- IS 1239 pipe fittings dimensions
- IS 1239 fittings weight chart
- IS 1239 chemical composition
- Mechanical properties of IS 1239 part 3 weld fittings
- IS 1239 hardness
- Yield strength of IS 1239 galvanized fittings
- IS 1239 equivalent
- Carbon content of IS 1239 mild steel fittings
- IS 1239 black weld fittings heat treatment
Get the benefits of custom sizes and specification IS 1239 Part 2 elbow.
IS 1239 material specification
IS 1239 tee for petrochemical plants, view IS 1239 Class C buttweld fittings types as per BS 1740 standard.
Common types of IS 1239 Part 2 elbow
IS 1239 45 deg elbow
IS 1239 class c 90 deg elbow
IS 1239 Class b 180 deg elbow
IS 1239 heavy grade long radius elbow
IS 1239 medium grade short radius elbow

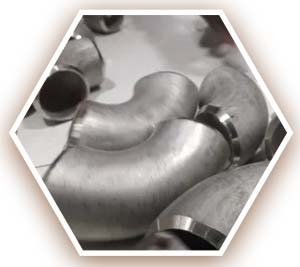

IS 1239 part 2 reducing elbow
Different types of IS 1239 tee
IS 1239 part 3 equal tee
IS 1239 mild steel reducing tee
IS 1239 galvanized lateral tee
Top selling types of IS 1239 reducer
IS 1239 black concentric reducer

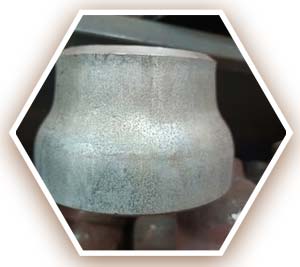

IS 1239 class C eccentric reducer
Most popular types of IS 1239 end cap

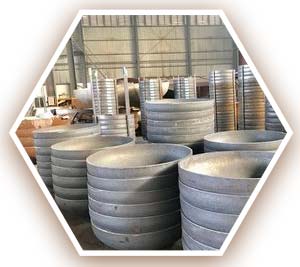

IS 1239 class B large diameter end caps
IS 1239 pressure vessel end caps
IS 1239 MS pressure tank end caps
Supplier of IS 1239 galvanized fittings that offers destructive testing, check IS 1239 mild steel fittings temperature range and tensile strength.
IS 1239 part 2 fittings temperature range
- Temperature 260°C
Tensile strength of IS 1239 class B mild steel fittings
- Tensile strength = 330MPa (minimum)
IS 1239 Class B reducer/ end cap are manufactured in seamless and welded construction, refer IS 1239 part 3 elbow dimensions & weight.
IS 1239 pipe fittings dimensions
| Size | Centre to Face |
|---|---|
| NPS | Minimum Length (A) |
| 6 | 16 |
| 8 | 22 |
| 10 | 24 |
| 15 | 32 |
| 20 | 35 |
| 25 | 43 |
| 32 | 51 |
| 40 | 52 |
| 50 | 64 |
| 65 | 76 |
| 80 | 89 |
| 100 | 115 |
| 125 | 140 |
| Size In Inch | Weight In KG | Weight In KG | Size In MM |
|---|---|---|---|
| NPS | SCH 40 | SCH 80 | DN |
| 1/2 | 0.08 | 0.1 | 15 |
| 1 | 0.15 | 0.21 | 25 |
| 1 1/2 | 0.39 | 0.52 | 40 |
| 2 | 0.66 | 0.96 | 50 |
| 3 | 2.19 | 2.87 | 80 |
| 4 | 4.13 | 5.6 | 100 |
| 5 | 6.89 | 9.62 | 125 |
| 6 | 10.7 | 16.5 | 150 |
Learn about the IS 1239 part 2 fittings chemical composition and mechanical properties of IS 1239 mild steel fittings
| Carbon | 0.20 |
|---|---|
| Manganese | 1.30 |
| Sulphur | 0.040 |
| Phosphorus | 0.040 |
Mechanical properties of IS 1239 part 3 weld fittings
| Tensile strength | 360 to 500 MPa |
|---|---|
| Elongation | 20 to 22% |
- Brinell Hardness = 120 – 190 HBW
Yield strength of IS 1239 galvanized fittings
- Yield strength = 210 to 240 MPa
- DIN: 2440
- BS: 1387
- ISO 1239
Carbon content of IS 1239 mild steel fittings
- Carbon = 0.20%
IS 1239 black weld fittings heat treatment
- Temperatures ranging = 860 – 950°C
- Before tempering = 180°C
