Incoloy 800 Fittings

Incoloy 800 Fittings

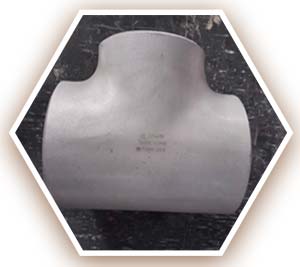

ASTM B366 UNS N08810 Tee

ASTM B366 UNS N08810 Tee

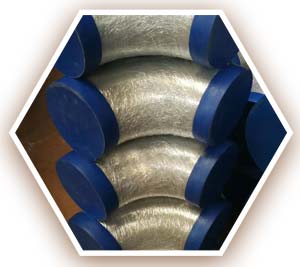

Nickel 800 Elbow

Nickel 800 Elbow

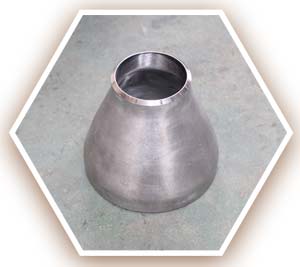

DN 1.4859 Reducer

DN 1.4859 Reducer



Table of Content





Check ASTM B366 UNS N08810 tee specifications as per ASME B16.9

ASTM B366 WPHC276 fittings specifications











A reputable Nickel 800 elbow manufacturer in India, view Alloy 800HT buttweld fittings types & annealing temperature

Annealing temperature of Alloy 800HT buttweld fittings

Grade 1 annealed Grade 2 annealed
980°C (1800°F) 1150°C (2100°F)



Tensile properties of Incoloy pipe fittings

Temperature in °C Temperature in °F Tensile Strength (MPa) Tensile Strength (ksi)
27 80 536 77.8
425 800 465 67.5
540 1000 432 62.7
650 1200 378 54.8
705 1300 329 47.7
760 1400 236 34.2



Incoloy 800H/800HT fittings representative rupture strength values

Temperature 10,000 h 30,000 h 50,000 h 100,000 h
°F °C KSI KSI KSI KSI
1200°F 650°C 17.5 15.0 14.0 13.0
1300°F 705°C 11.0 9.5 8.8 8.0
1400°F 760°C 7.3 6.3 5.8 5.3
1500°F 815°C 5.2 4.4 4.1 3.7
1600°F 870°C 3.5 3.0 2.8 2.5
1700°F 925°C 1.9 1.6 1.4 1.2
1800°F 980°C 1.2 1.0 0.9 0.8
Temperature 10,000 h 30,000 h 50,000 h 100,000 h
°F °C MPa MPa MPa MPa
1200°F 650°C 121 103 97 90
1300°F 705°C 76 66 61 55
1400°F 760°C 50 43 40 37
1500°F 815°C 36 30 28 26
1600°F 870°C 24 21 19 17
1700°F 925°C 13 11 10 8.3
1800°F 980°C 8.3 6.9 6.2 5.5



Type of Incoloy 800 elbow

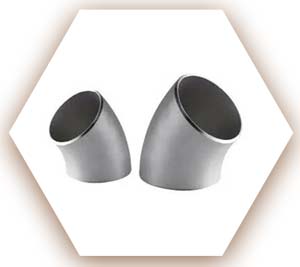

Incoloy 45 deg elbow

Incoloy 45 deg elbow

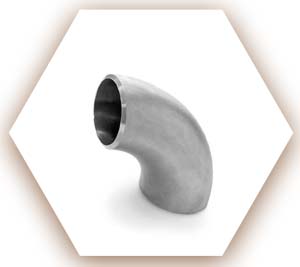

Inconel 800H 90 deg elbow

Inconel 800H 90 deg elbow

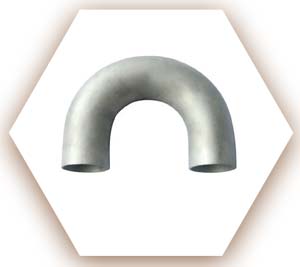

UNS N08811 180 deg elbow

UNS N08811 180 deg elbow

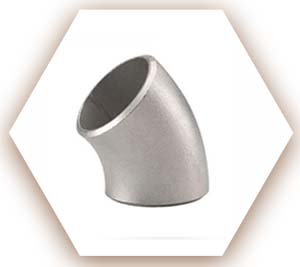

Incoloy 800HT long radius elbow

Incoloy 800HT long radius elbow

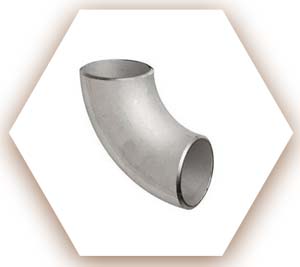

WNR 1.4859 short radius elbow

WNR 1.4859 short radius elbow

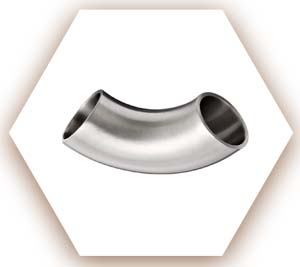

Alloy 800HT pipe elbow

Alloy 800HT pipe elbow



Types of Nickel 800 tee

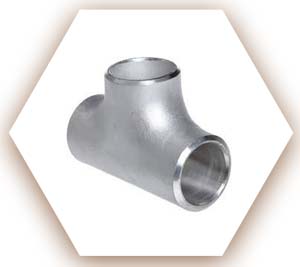

Nickel 800 equal tee

Nickel 800 equal tee

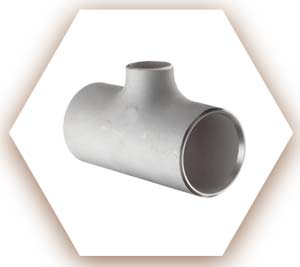

Nickel Alloy 800 reducing tee

Nickel Alloy 800 reducing tee

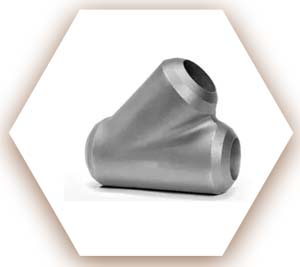

Incoloy alloy 800 lateral tee

Incoloy alloy 800 lateral tee



Types of Nickel Alloy 800 reducer

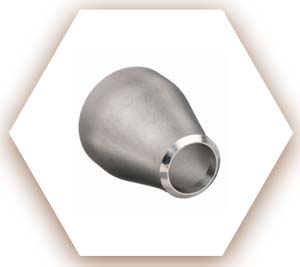

Werkstoff nr 1.4876 concentric reducer

Werkstoff nr 1.4876 concentric reducer

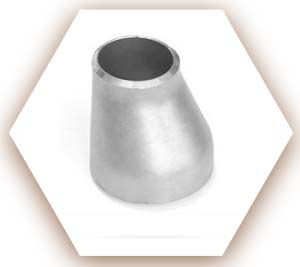

ASTM B366 N08800 eccentric reducer

ASTM B366 N08800 eccentric reducer



Types of Werkstoff nr 1.4876 end cap & stub end

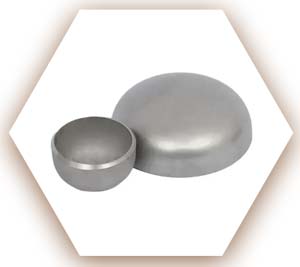

800 nickel alloy end caps

800 nickel alloy end caps

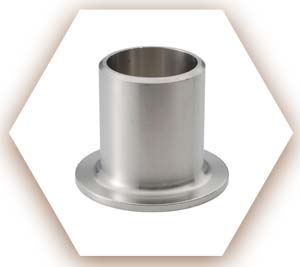

Incoloy long stub end

Incoloy long stub end

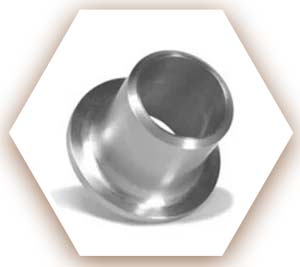

UNS N08811 short stub end

UNS N08811 short stub end



Types of ASTM B366 UNS N08800 pipe bend

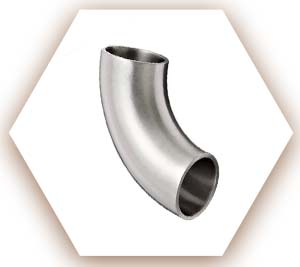

Ni 800 45 degree bend

Ni 800 45 degree bend

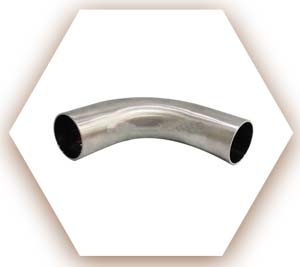

Incoloy 800H 90 deg bend

Incoloy 800H 90 deg bend

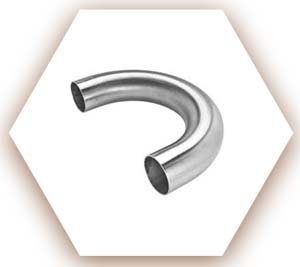

ASTM B366 N08811 180 deg pipe bend

ASTM B366 N08811 180 deg pipe bend

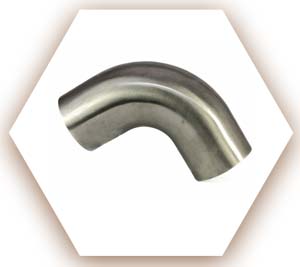

Nickel 800H long radius bend

Nickel 800H long radius bend

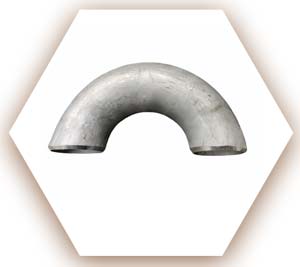

Alloy 800 short radius bend

Alloy 800 short radius bend



Check the chemical & corrosion resistance of DN 1.4859 seamless pipe fittings, contact for any quantity and size range

Incoloy fittings chemical composition

Element Incoloy 800 Fittings Incoloy 800H Fittings Incoloy 800HT Fittings
C 0.10 max 0.05 – 0.10 0.06 – 0.10
Mn 1.50 max 1.50 max 1.50 max
Si 1.00 max 1.00 max 1.00 max
S 0.015 max 0.015 max 0.015 max
Cu 0.75 max 0.75 max 0.75 max
Fe 39.50 min 39.50 min 39.50 min
Ni 30.00 – 35.00 30.00 – 35.00 30.00 – 35.00
Cr 19.00 – 23.00 19.00 – 23.00 19.00 – 23.00
Al 0.15 – 0.60 0.15 – 0.60 0.15 – 0.60
Ti 0.15 – 0.60 0.15 – 0.60 0.15 – 0.60



DN 1.4859 seamless pipe fittings corrosion resistance

  • Incoloy 800 fittings used in nitric and organic acid service
Buy a Nickel Alloy 800 reducer and B366 N08800 pipe bend in buttweld & seamless condition with a burst test report

Incoloy fittings testing requirements

  • Ultrasonic test
  • PMI test
  • Magnetic Particle Examination
  • Hyrdrostatic test
  • HIC test
Incoloy fittings testing requirements



Also check Inconel 800H weld fittings hardness value, density, and tensile strength of nickel alloy 800HT butt welded fittings in KSI & MPa.

Incoloy alloy 800 butt welded fittings hardness value

  • Brinell = 126 (max.)

Density for Inconel 800H weld fittings

  • 7.94 g/cm³
  • 0.287 lb/in³

Tensile strength of Ni 800 BW fittings in PSI & MPa

  • MPa = 531
  • PSI = 77,000 (min.)

800 nickel alloy butt welded fittings operating temperature

  • 1500°F
  • 816°C

Inconel 800H welded fittings melting point

  • 1357-1385°C
  • 2475-2525°F

Mechanical properties of Incoloy buttweld fittings

Element Incoloy Fittings
Yield Strength (0.2%Offset) Psi – 30,000 , MPa – 205
Elongation 30%
Elongation at Break 45%



High performing incoloy fittings equivalent

Standard Incoloy 800 Fittings Incoloy 800H Fittings Incoloy 800HT Fittings
WERKSTOFF NR. 1.4876 1.4958 / 1.4876 1.4859 / 1.4876
UNS N08800 N08810 N08811
JIS NCF 800 NCF 800H 800HT
BS NA 15 NA 15(H) NA 15(HT)
GOST ЭИ670 ЭИ670 ЭИ670
AFNOR Z8NC32-21 Z8NC33-21 –
EN X10NiCrAlTi32-20 X5NiCrAlTi31-20 X8NiCrAlTi32-21
