ASTM B564 UNS N10276 Flange

Learn about the B564 N10276 forged pipe flange specification as per ASME B16.5

ASTM B564 UNS N10276 flange

ASTM B564 UNS N10276 blind flange

ASTM B564 UNS N10276 blind flange

B564 N10276 weld neck flange

B564 N10276 weld neck flange

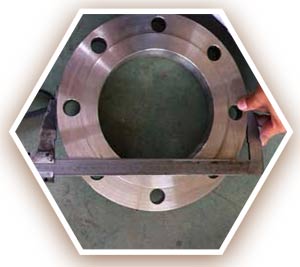

ASME SB564M UNS N10276 slip on flange

ASME SB564M UNS N10276 slip on flange





Specifications of ASTM B564 UNS N10276 flange









Call now for a trusted manufacturer of ASME B564 UNS N10276 blind flange at custom sizes

ASME B564 UNS N10276 blind flange dimensions as per B16.5

ASME B564 UNS N10276 blind flange dimensions as per B16.5

NPS KG B Bolt Holes D Holes C A
Nominal Pipe Size Weight Thickness Diameter Bolt Circle Diameter Bolt Raised Face Diameter Outer Diameter
1/2 2 7/16 5/8 2-3/8 4 1-3/8 3-1/2
3/4 2 1/2 5/8 2-3/4 4 1-11/16 3-7/8
1 2 9/16 5/8 3-1/8 4 2 4-1/4
1-1/2 3 11/16 5/8 3-7/8 4 2-7/8 5
2 4 3/4 3/4 4-3/4 4 3-5/8 6
3 9 15/16 3/4 6 4 5 7-1/2
5 20 15/16 7/8 8-1/2 8 7-5/16 10
6 27 1 7/8 9-1/2 8 8-1/2 11
NPS KG B Bolt Holes D Holes C A
Nominal Pipe Size Weight Thickness Diameter Bolt Circle Diameter Bolt Raised Face Diameter Outer Diameter
8 47 1-1/8 7/8 11-3/4 8 10-5/8 13-1/2
10 67 1-3/16 1 14-1/4 12 12-3/4 16
12 123 1-1/4 1 17 12 15 19
14 139 1-3/8 1-1/8 18-3/4 12 16-1/4 21
16 187 1-7/16 1-1/8 21-1/4 16 18-1/2 23-1/2
18 217 1-9/16 1-1/4 22-3/4 16 21 25
20 283 1-11/16 1-1/4 25 20 23 27-1/2
24 415 1-7/8 1-3/8 29-1/2 20 27-1/4 32



Buy ready stock of ASME SB564 UNS N10276 weld flanges with most selling types, check B564 UNS N10276 slip on flange European standards

Most demanded types of B564 UNS N10276 forged flange

ASTM B564 N10276 socket weld flange

ASTM B564 N10276 socket weld flange

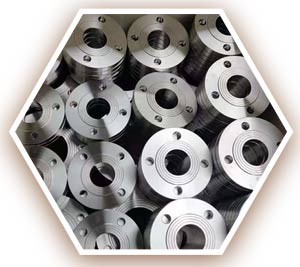

ASTM B564 N10276 lap joint flange

ASTM B564 N10276 lap joint flange

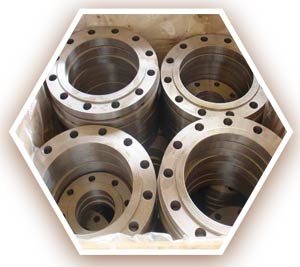

SB564 N10276 plate flanges

SB564 N10276 plate flanges

ASME SB 564 N10276 weld flanges

ASME SB 564 N10276 weld flanges

SB564 N10276 threaded flange

SB564 N10276 threaded flange

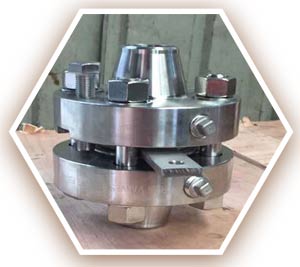

ASTM B564M UNS N10276 orifice flange

ASTM B564M UNS N10276 orifice flange

B564 N10276 spectacle blind flanges

B564 N10276 spectacle blind flanges

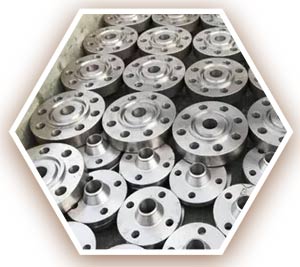

B564 UNS N10276 reducing flange

B564 UNS N10276 reducing flange

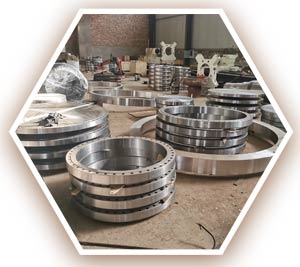

ASME SB564M UNS N10276 large diameter flanges

ASME SB564M UNS N10276 large diameter flanges



Other Types

Most types of ASTM B564 UNS N10276 slip on flange Top selling types Of ASME SB564 UNS N10276 weld neck flange Types Of B564 UNS N10276 blind flange
  • SB564 N10276 slip on raised face flange
  • ASME SB 564 N10276 slip on flat face flange
  • ASTM B564 N10276 slip on reducing flange
  • B564 N10276 slip on welding flange
  • SB 564 UNS N10276 slip on RTJ flange
  • ASME SB564 N10276 slip on blind flange
  • SB 564 N10276 long weld neck flange
  • ASTM B 564 UNS N10276 ring type joint weld neck flange
  • SB564 UNS N10276 weld neck orifice flange
  • ASTM B564M UNS N10276 raised face weld neck flange
  • ASTM B 564 UNS N10276 weld neck blind flanges
  • SB564 UNS N10276 weld neck slip on flanges
  • ASME SB564M UNS N10276 flat face weld neck flange
  • ASME SB564 N10276 threaded blind flanges
  • B564 N10276 blind slip on flanges
  • SB 564 UNS N10276 weld neck flanges
  • ASME SB 564 N10276 raised face blind flanges
  • ASTM B564 N10276 socket weld blind flanges
  • SB564 N10276 flat face blind flanges
  • SB 564 N10276 ring type joint blind flanges



European standards of ASME SB564 N10276 forged pipe flange

EN Standards Diagram Flanges Types
EN 1092-1 Type 01 EN 1092-1 Type 01 Plate welding flange
Type 02 Type 02 Loose plate flange
Type 04 Type 04 Loose plate flange
EN 1092-1 Type 05 EN 1092-1 Type 05 Blind flange
Type 11 Type 11 Weld neck flange
Type 12 Type 12 Hubbed slip on flange
Type 13 Type 13 Threaded hubbed flange
EN 1092-1 Type 21 EN 1092-1 Type 21 Long weld neck flange



Check the machining process of ASME SB564 N10276 weld neck flange, and find a reliable ASTM B564 N10276 socket weld flange supplier & stockist in Mumbai

B564 UNS N10276 slip on flange machining process

  • Choose material
  • forging
  • Drilling holes
  • Chamfering edges
  • Cutting
  • Sealing faces
  • Heat treatment
  • Machining
  • Forming
  • Inspection test
  • Packaging
B564 UNS N10276 slip on flange machining process



Country origin and manufacturing standards

Malaysia Australia USA Korea Canada Europe
MS 816, MS 253 AS 2129 ASME, ASTM, MSS SP44, AWWA, API-605 KS CSA B16.5/ B16.47 EN
Russia Japan Germany China Europe France
Ghost JIS DIN GB/T 9112 / 9119 ISO 7005, BS EN 1092-2 (Iron), PN NF E 29-200/ NF E 29-203
Australia and UK Italy Europe Europe USA
BS 10 UNI 2276/ 6091 BS EN 1092-1 (Steel) BS EN 1092-3 (Alloy) ANSI



Refer SB564 N10276 plate flanges chemical composition and SB 564 UNS N10276 hot forged flange mechanical properties

ASME SB564 UNS N10276 weld flanges equivalent grades

ASME SB564 UNS N10276 weld flanges equivalent grades

Corrosion test of ASTM B564 UNS N10276

MATERIAL Corrosion Rate, mpy (mm/a) Test Duration Temperature
ASTM B564 UNS N10276 0.3 (0.01) 36 Hours 932–1112°F (500–600°C)



Maximum pitting of SB 564 UNS N10276 hot forged flange

Alloy Quencher Absorber Absorber Outlet Outlet Duct Bypass Duct
ASME SB564 UNS N10276 Nil Nil <2 (<0.05) Nil Nil



ASTM B564 UNS N10276 chemical composition

Element Value
Cr 14.50 – 16.50
Co 2.5 (maximum)
S 0.03 (maximum)
P 0.04 (maximum)
Fe 4.00 – 7.00
Si 0.08 (maximum)
Mn 1.00 (maximum)
Mo 15.00 – 17.00
C 0.010 (maximum)
Ni Balance



Mechanical properties of B564 N10276 flange

Condition Elongation Yield Strength
(0.2% Offset)
Tensile Strength
%, minimum MPa & PSI, min MPa & PSI, minimum
All forgings 40 283 & 52,000 690 & 1,15,000



ASME SB564M UNS N10276 flange physical properties

Density 8.89 g/cm3 0.321 lb/in.3
Melting Point 2415 – 2500 °F 1323 – 1371 °C
