ASTM B366 WP20CB Fittings

ASTM B366 WP20CB Fittings

Grade WP20CB Tee

Grade WP20CB Tee

ASTM B366 grade WP20CB Elbow

ASTM B366 grade WP20CB Elbow

SB366 WP20CB Reducer

SB366 WP20CB Reducer





Compare specification with other Grade WP20CB tee manufacturers in India.

ASTM B366 WP20CB fittings specifications











View ASME SB366-WP20CB buttweld fittings temperature range, and hardness of ASTM B366 grade WP20CB elbow in rockwell & brinell

SB366 WP20CB pipe fittings temperature range

Temperature in °C Temperature in °F
1150 and 900 °C 2100 to 1650 °F



Hardness of ASTM B366 WP20CB in rockwell & brinell

Hardness In Brinell Hardness In Rockwell
217 (max) 95 (max)



ASTM B366 WP20CB elbow applications

  • Heat exchangers
  • Tanks
  • Chemical and allied industries
  • Food and dye production
  • Pharmaceuticals
  • Synthetic rubber manufacturing
  • plastic manufacturing
ASTM B366 WP20CB elbow applications



Suitable environment for B366 Gr WP20CB butt welding fittings

  • Sulphuric acid
  • Organic acids
  • Hydrochloric acid
  • Caustic Soda

ASME SB366-WP20CB buttweld fittings standard & size

Standard Type Size Wall Thickness
ASME B16.9 Elbow, Tee, Reducer, End Cap, Cross, Stub End 1/2″-48″ SCH 5S To SCH XXS
Tee 1/2″ To 36″ 12″ To 80″ 1/2″ To 24″
ASME B16.28 Short Radius 180 Deg Returns 1/2″-24″ SCH 5S To SCH XXS
ASME B16.49 30/ 45/ 60/ 90 Degree Long & Short Radius Bend 1/8″-12″ SCH 5S-SCH XXS
MSS-SP43 Lap Joint Stub Ends 1/2″-24″ SCH 5S-SCH XXS
MSS-SP 75 3R Elbow, Straight Tee, Reducing Outlet, Cap, Reducer 16″-60″ SCH 5S To SCH XXS
DIN & JIS Buttwelding Products DN15 To DN1500 SCH 20 To SCH XXS



Type of ASTM B366 grade WP20CB elbow

ASTM B366 WP20CB 45 deg elbow

ASTM B366 WP20CB 45 deg elbow

Grade WP20CB 90 deg elbow

Grade WP20CB 90 deg elbow

ASTM B366 Grade WP20CB 180 deg elbow

ASTM B366 Grade WP20CB 180 deg elbow

SB366 WP20CB long radius elbow

SB366 WP20CB long radius elbow

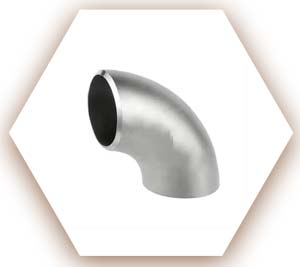

ASTM B366 Grade WP20CB short radius elbow

ASTM B366 Grade WP20CB short radius elbow

B366 WP20CB pipe elbow

B366 WP20CB pipe elbow



Types of Grade WP20CB tee

ASME SB366 Grade WP20CB equal tee

ASME SB366 Grade WP20CB equal tee

ASME SB366-WP20CB reducing tee

ASME SB366-WP20CB reducing tee

ASTM B366 Grade WP20CB lateral tee

ASTM B366 Grade WP20CB lateral tee



Types of SB366 WP20CB reducer

B366 WP20CB concentric reducer

B366 WP20CB concentric reducer

SB366 WP20CB eccentric reducer

SB366 WP20CB eccentric reducer



Types of ASTM B366 grade WP20CB cap & stub end

B366 Gr WP20CB end caps

B366 Gr WP20CB end caps

ASTM B366 Gr.WP20CB long stub end

ASTM B366 Gr.WP20CB long stub end

Grade WP20CB short stub end

Grade WP20CB short stub end



Types of ASME SB366 grade WP20CB pipe bend

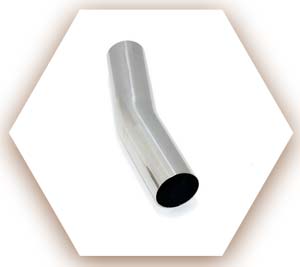

SB366 WP20CB 45 degree bend

SB366 WP20CB 45 degree bend

ASTM B366 Grade WP20CB 90 deg bend

ASTM B366 Grade WP20CB 90 deg bend

B366 WP20CB 180 deg pipe bend

B366 WP20CB 180 deg pipe bend

ASME SB366 grade WP20CB long radius bend

ASME SB366 grade WP20CB long radius bend

ASME SB366-WP20CB short radius bend

ASME SB366-WP20CB short radius bend



B366 Gr WP20CB reducer manufacturing methods

Hydraulic Bulge Method

Receiving Inspection

Receiving Inspection

Cutting

Cutting

Tee Forming

Forming

Tee Heat Treatment

Heat Treatment

Tee Shot Blasting & Cleaning

Shot Blasting & Cleaning

Tee Beveling

Beveling

Tee Coating

Coating



Check online chemical composition of B366 WP20CB seamless fittings, and SB366 WP20CB reducer manufacturing methods as per ASME B16.9

WP20CB chemical composition

CarbonNiobium+tantalumManaganesePhosphorusSulfur-

Nickel Chromiun Copper Molybdenum Iron Silicon
32.0-38.0 19.0-21.0 3.0-4.0 2.0-3.0 Balance ≤1.00
≤0.07 8C-1.0 ≤2.00 ≤0.045 ≤0.035



ASTM B366 Grade WP20CB end cap supplier & stockist in Mumbai, refer B366 WP20CB seamless fittings heat treatment

WP20CB heat treatment

Stabilized-Annealing Stress relieving
1750-1850ºF (water quenching) 950ºF (Annealed material)



Don’t forget to check the B366 Gr WP20CB butt welding fittings corrosion resistance chart, density, and ASTM B366 gr.WP20CB weldable pipe fittings heat capacity

Corrosion resistance of B366 WP20CB seamless fittings

  • ASTM B366 WP20CB fittings has very good resistance to sulfuric acid.
  • ASME SB366-WP20CB buttweld fittings suitable resistance in nitric & phosphoric acid.

Heat capacity of SB366 WP20CB fittings

Specific Heat at 32 to 212ºF Magnetic Permeability at 68ºF
0.12 BTU/lb/ºF 1.002 Mu



ASTM B366 grade WP20CB welded fittings surface condition

Annealed
Pickled Polished Sand Blasted



WP20CB fittings equivalent material

UNS WP CR
N08020 WP20CB CR20CB



ASTM B366 gr.WP20CB weldable pipe fittings tensile strength

  • Mpa = 620 (min.)
  • KSI = 90 (min.)

WP20CB material mechanical properties

Yield Strength 300 (Mpa) 45 (KSI)
Elongation 40%
Young’s Modulus 28 (103 KSI) 193 (Gpa)
Specific Heat J/kg.°C 500
Electrical Resistivity µΩ·m 1.08
Thermal Conductivity W/m.°C 12.3
