ASTM A815 UNS S32750 Fittings
A815 UNS S32750 Elbow
ASTM A815 UNS S32750 Tee
ASME SA815 UNS S32750 Reducer
Table of Content
- ASTM A815 UNS S32750 material specifications
- ASME SA815 S32750 welded fittings heat treatment in °C
- Types of A815 UNS S32750 elbow
- Types of A815 S32750 tee
- Types of SA 815 S32750 reducer
- Type ASTM A815 WP-S UNS S32750 cap & stub end
- Type of A815 WPX UNS S32750 pipe bend
- ASTM A815 UNS S32750 fittings equivalent
- SA 815 UNS S32750 buttweld fittings chemical composition
- ASTM A815 UNS S32750 weld fittings mechanical properties
- WPS S32750 welded pipe fittings tensile strength
- A815 WPX UNS S32750 butt welding fittings yield strength
- ASTM A815 UNS S32750 fittings heat treatment
Biggest ASME SA815 WP-W UNS S32750 tee manufacturer in India
ASTM A815 UNS S32750 material specifications
Get A815 UNS S32750 elbow in bevel and plain end, check SA 815 UNS S32750 buttweld fittings heat treatment in °C.
ASME SA815 S32750 welded fittings heat treatment in °C
- Solution annealing = 1100°C
Check ASTM A815 UNS S32750 weld fittings most selling types, and chemical composition of A815 S32750 WP-S seamless fittings as per ASME B16.9
Types of A815 UNS S32750 elbow
ASTM A815 UNS S32750 45 deg elbow

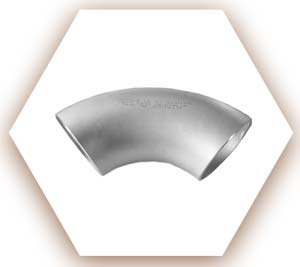

A815 UNS S32750 90 deg elbow
SA 815 S32750 180 deg elbow

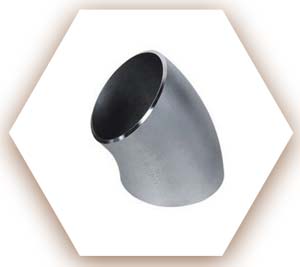

UNS S32750 long radius elbow

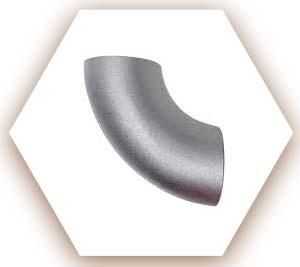

ASTM A815 S32750 short radius elbow
A815 S32750 S32750 pipe elbow

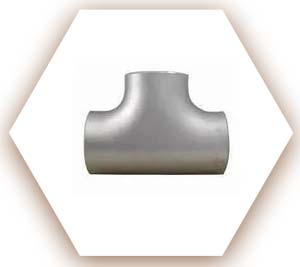

ASTM A815 WP-S UNS S32750 equal tee

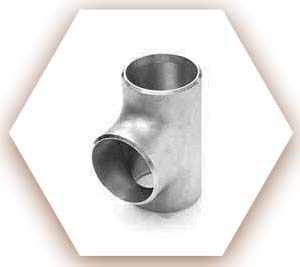

SA 815 S32750 reducing tee
ASME SA815 UNS S32750 lateral tee
Types of SA 815 S32750 reducer

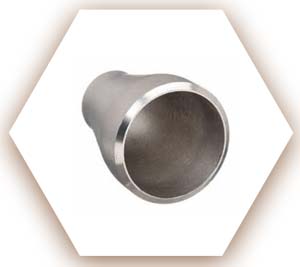

WPS S32750 concentric reducer

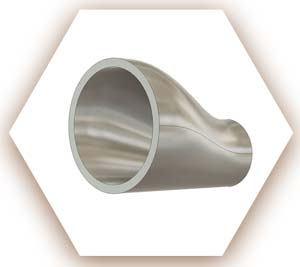

ASTM A815 WPX UNS S32750 eccentric reducer
Type ASTM A815 WP-S UNS S32750 cap & stub end
WPS S32750 end caps
ASTM A815 WPS 31803 long stub end
A815 WPX UNS S32750 short stub end
Type of A815 WPX UNS S32750 pipe bend

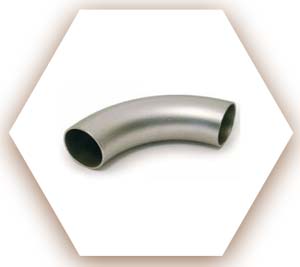

WPS S32750 45 degree bend
A815 S32750 WP-S 90 deg bend
S32750 WP-W 180 deg pipe bend
A815 UNS S32750 long radius bend
SA815 UNS S32750 short radius bend
ASTM A815 UNS S32750 fittings equivalent
| Material | UNS | WERKSTOFF NR. |
|---|---|---|
| Super Duplex | S32750 | 1.4410 |
SA 815 UNS S32750 buttweld fittings chemical composition
| C | Mn | Si | P | S |
|---|---|---|---|---|
| 0.03 max | 1.2 max | 0.8 max | 0.035 max | 0.02 max |
| Cr | Mo | Ni | N | Fe |
| 24 To 26 | 3 To 5 | 6 To 8 | 0.24 To 0.32 | 58.095 (minimum) |
Supplier of SA 815 S32750 reducer in various schedule tested as per NACE MR01-75 standard, mechanical properties of ASME SA815 S32750 welded fittings
ASTM A815 UNS S32750 weld fittings mechanical properties
| Density (g/cm 3) | Melting Point (°C) | UTS N/mm²(min) | 0.20% Proof (min) | Thermal Expansion |
|---|---|---|---|---|
| 7.8 | 1350 | 750 | 500-550 | 13.7 x10^-6 /K |
| Proof Stress | Modulus of Elasticity | Elongation A50 mm | Thermal Conductivity | Electrical Resistivity |
| 450 Min MPa | 200 GPa | 25 Min % | 19.0 W/m.K | 0.085 x10^-6 Ω .m |
Refer WPS S32750 welded pipe fittings tensile strength, and yield strength of A815 WPX UNS S32750 butt welding fittings
WPS S32750 welded pipe fittings tensile strength
- Ultimate Tensile Strength = 116 KSI
A815 WPX UNS S32750 butt welding fittings yield strength
- Ultimate Tensile Strength = 116 KSI
- 0.1% Offset Yield Strength 0.2% = 91 KSI
ASTM A815 UNS S32750 fittings heat treatment
- Solution Annealed = 1925ºF (minimum)
