ASTM A403 WP316 End Cap

HomeASTM A403 WP316 End Cap

What are the main methods of producing ASTM A403 WP316 end cap?

  • Hot forming- it involves heating a piece of WP316 stainless steel to a high temperature and then using a die or mold to shape the material into an end caps with complex shapes.
  • Cold forming: Cold forming involves using a hydraulic press to shape a piece of WP316 ss into an end caps. ASTM A403 WP316 end cap manufacturers in India produce them in small sizes with a smooth, uniform finish.
  • Machining: Machining involves using a lathe or other cutting tool to shape a piece of WP316 stainless steel into an end cap of smaller size with a high degree of precision and a smooth surface finish.
  • Welding: Welding involves joining two or more pieces of ss together to create an A403 Gr WP316 pipe end cap of custom shapes and a high degree of structural integrity.

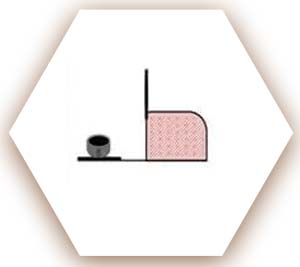

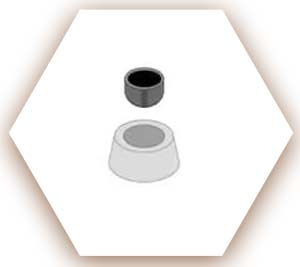

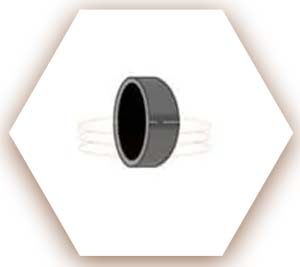

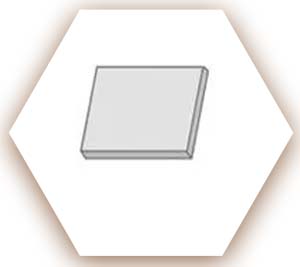

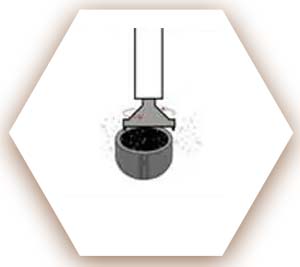

SA 403 Grade WP316 end caps manufacturer in India, view manufacturing process

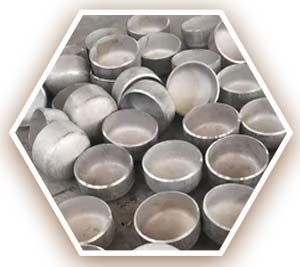

ASTM A403 WP316 end cap

What are the common sizes available for SA 403 Grade WP316 end caps?

SA 403 Grade WP316 end caps are available in various sizes to suit various piping applications- the common sizes available for A403 Gr WP316 caps mostly range from 1/2 inch to 48 inches in diameter.

Compare the size range of different A403 Gr WP316 cap supplier in Mumbai

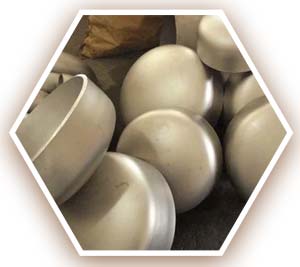

SA 403 WP316 buttweld end cap

SA 403 WP316 buttweld end cap

A403 Gr WP316 cap

A403 Gr WP316 cap

ASTM A403 Grade wp316 pipe cap

ASTM A403 Grade wp316 pipe cap



How does the wall thickness affect the pressure rating of a SA403 WP316 welded cap?

The wall thickness of an SA403 WP316 welded cap is a key factor affecting its pressure rating- as the wall thickness of the cap increases, the pressure rating of the caps also increases. The pressure rating of a welded caps is determined by several factors like the material properties, the dimensions of the caps and the wall thickness. The wall thickness of the caps is particularly important as it affects the structural integrity and resistance of the caps to internal pressure.

Stockists of SA 403 WP316 buttweld end cap and SA403 WP316 welded cap in schedule 10 to SCH 80 wall thickness



ASTM A403 WP316 end cap Specifications

ASTM A403 WP316 End Cap Specifications

Get quick delivery of ASME SA403 WP316 large diameter cap with Brinell hardness test

Types of Grade WP316 end caps

SA 403 Grade WP316 end caps

SA 403 Grade WP316 end caps

  • End Connection :
  • Plane end (PE)
  • Bevel end
  • Flange end

A403 WP316 seamless pipe cap

A403 WP316 seamless pipe cap

  • Ordering Information :
  • Quantity/ sizes/ types/ standard
  • Wall thickness & material
  • Distance from end to end

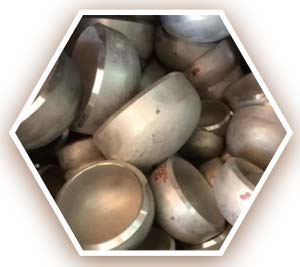

SA403 WP316 welded caps

SA403 WP316 welded caps

  • Standards :
  • ASME B16.9
  • DIN 2617/ DIN 28011
  • MSS SP 43/ EN 10253

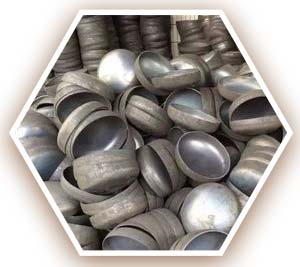

ASME SA403 WP316 large diameter cap

ASME SA403 WP316 large diameter cap

  • Thickness :
  • SCH10, SCH20, SCH30, STD, SCH40
  • SCH60, xs, SCH80, SCH100, SCH120
  • SCH140, SCH160, xxs

A403 Gr WP316 pipe end cap

A403 Gr WP316 pipe end cap

  • Value Added Services :
  • Chemical analysis
  • Mechanical testing
  • Flattening test

SA403 Grade wp316 pipe end caps

SA403 Grade wp316 pipe end caps

  • Sizes :
  • Seamless = 1/2″~28″
  • Welded = 4″~78″
  • Buttweld = 1/2″~24″



Refer A403 WP316 seamless pipe cap dimensions as per ASME B16.9, and A403 Gr WP316 pipe end cap chemical & mechanical properties

Equivalent of SA 403 WP316 buttweld end cap

Equivalent of SA 403 WP316 buttweld end cap

ASME SA403 WP316 weld cap chemical composition

ASME SA403 WP316 weld cap chemical composition

A403 Gr WP316 cap mechanical properties

A403 Gr WP316 cap mechanical properties

ASTM A403 WP316 end cap dimensions

ASTM A403 WP316 End Cap dimensions

What is the standard used in SA 403 WP316 buttweld end cap?

The standard used in The standard used in SA 403 WP316 buttweld end caps is the ASME B16.9 standard. Some key points related to the standard are:

  • ASME B16.9 is a standard published by the American Society of Mechanical Engineers that covers factory-made wrought butt-welding fittings.
  • It specifies the dimensions and tolerances including the outside diameter, wall thickness, center-to-end dimensions, and overall length.
  • ASME B16.9 specifies the materials that can be used to manufacture the A403 Gr WP316 pipe end caps.
  • ASME B16.9 requires that all end caps be marked with certain information- including the manufacturer’s name or trademark, the material designation, the size and the heat number.

What is the outside diameter of an ASME SA403 WP316 large diameter cap?

The outside diameter of an ASME SA403 WP316 large diameter cap is equal to the outside diameter of the pipe or fitting to which it is being attached- this ensures that the caps is compatible with the other components in the piping system and provides a smooth transition between the caps and the pipe or fitting.

How do you calculate the weight of an A403 WP316 seamless pipe cap?

  • You will need to know the outside diameter (OD) and the wall thickness (WT) of the caps. These dimensions can be found in the specification or by measuring the caps.
  • The volume of the cap can be calculated using the following formula:
  • Volume = π/4 x (OD^2 – ID^2) x WT
  • where OD is the outside diameter of the caps and ID is the inside diameter of the caps. The density of A403 WP316 seamless pipe cap material is approximately 8,000 kg/m3.
  • The weight of the ASTM A403 Grade wp316 pipe cap can be calculated by Weight = Volume x Density
