ASTM A234 WPB elbow specifications
- Schedule = 40
- Radius = Short
- Method = Butt Weld
| Size In Inch | Price in UAE Dirham (AED) per unit | Price in US (Dollar) per unit |
|---|---|---|
| 1″ NB | 32.54 | US $8.86 |
| 1-1/4″ NB | 33.68 | US $9.17 |
| 1-1/2″ NB | 41.03 | US $11.17 |
| 2″ NB | 50.25 | US $13.68 |
| 2-1/2″ NB | 62.29 | US $16.96 |
| 3″ NB | 67.32 | US $18.33 |
| 4″ NB | 82.46 | US $22.45 |
| 5″ NB | 152.87 | US $41.62 |
| 6″ NB | 167.70 | US $45.66 |
Manufacturing types of A234 Grade WPB buttweld elbow
ASTM A234 WPB seamless elbow
SA234 long radius elbow
A234 WPB carbon steel short radius elbow
Carbon steel A234 WPB 22.5 degree elbow
SA 234 Gr WPB 30 degree elbow
A234 CS 45 deg elbow
SA234 Grade WPB 60 degree elbow
A234 WPB SMLS 90 deg elbow
SA234 WPB 120 degree elbow
A234 WPB 180 degree elbow
Grade WPB 1D elbow
ASTM A234 GR WPB 2.5D elbow
SA 234 GR WPB 3D elbow
ASME A234 WPB 5D elbow
A234 WPB carbon steel 10D elbow

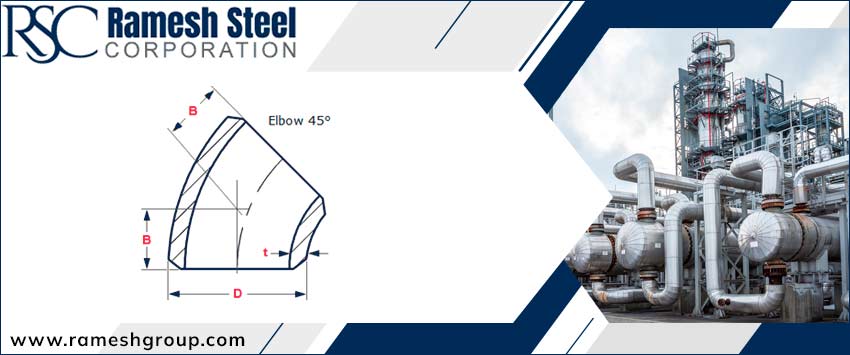

ASTM A234 WPB elbow dimensions
| Size | Center to end | Wall | Weight |
|---|---|---|---|
| NPS | (B and D) | Thickness | KG |
| 1 | 22 | 3.38 | 0.08 |
| 2 | 35 | 3.91 | 0.32 |
| 3 | 51 | 5.49 | 1.02 |
| 4 | 64 | 6.02 | 1.95 |
| 5 | 79 | 6.55 | 3.25 |
| 6 | 95 | 7.11 | 5.1 |
| 8 | 127 | 8.18 | 11.15 |
| 10 | 159 | 9.27 | 20.5 |
| 12 | 190 | 9.52 | 27 |
SA 234 WPB 90 degree LR elbow weight chart
| NPS In | Weight |
|---|---|
| Inch | Kilogram |
| 1/2 | 0.08 |
| 3/4 | 0.08 |
| 1 | 0.15 |
| 1 1/2 | 0.4 |
| 2 | 0.7 |
| 3 | 2.0 |
| 4 | 3.8 |
| 5 | 6.5 |
| 6 | 10.1 |
| 8 | 20.1 |
| 10 | 36.0 |
| 12 | 53.0 |
| 14 | 68.0 |
| 16 | 89.0 |
| 18 | 113.0 |
| 20 | 140.0 |
| 24 | 202.0 |
A234 WPB 45 degree elbow weight chart
| Size | Weight In KG | Size |
|---|---|---|
| NPS | SCH 40 | DN |
| 1/2 | 0.04 | 15 |
| 3/4 | 0.06 | 20 |
| 1 | 0.08 | 25 |
| 1 1/2 | 0.22 | 40 |
| 2 | 0.37 | 50 |
| 3 | 1.23 | 80 |
| 4 | 2.31 | 100 |
| 6 | 5.99 | 150 |
| 8 | 12.10 | 200 |
| 10 | 20.72 | 250 |
| 12 | 34.16 | 300 |
| 14 | 47.66 | 350 |
| 16 | 67.76 | 400 |
| 18 | 98.56 | 450 |
| 20 | 129.92 | 500 |
ASME A234 WPB seamless elbow material coatings
- Anti rust light oiling
- Varnished
- Back painting
- FBE coated
- PE coating
- Hot-dip galvanizing
A234 WPB carbon steel welded elbow suitable temperature
- 1150°F
- 620°C
ASTM A234 Grade WPB long radius elbow chemical composition
| Element | ASTM A234 WPB Elbow |
|---|---|
| Cr [Chromium] | ≤0.40 |
| Cu [Copper] | ≤0.40 |
| V [Vanadium] | ≤0.08 |
| P [Phosphorus] | ≤0.050 |
| Si [Silicon] | ≥0.10 |
| Mn [Manganese] | 0.29-1.06 |
| Mo [Molybdenum] | ≤0.15 |
| Ni [Nickel] | ≤0.40 |
| C [Carbon] | ≤0.30 |
| S [Sulfur] | ≤0.058 |
SA234 WPB elbow mechanical properties
| – | KSI | MPa |
|---|---|---|
| Tensile Strength (Min) | 60 | 415 |
| Yield Strength (min) | 35 | 240 |
| Elongation (%) (min) | 22 (Longitudinal) | 14 (Transverse) |
Frequently Asked Questions (FAQs) –
What are the common manufacturing problems encountered with ASTM A234 WPB elbow?
- Cracking due to improper welding techniques
- Dimensional inaccuracies
- Surface defects
- Improper selection of materials
What type of coatings is available for A234 WPB seamless elbow?
- Epoxy Coating
- Zinc Coating
- Polyethylene Coating
- Fusion Bonded Epoxy Coating
- Galvanized Coating
What is the recommended surface treatment for an ASTM A234 Grade WPB buttweld elbow?
- Shot Blasting
- Pickling
- Passivation
- Electroplating
- Painting
- Coating
